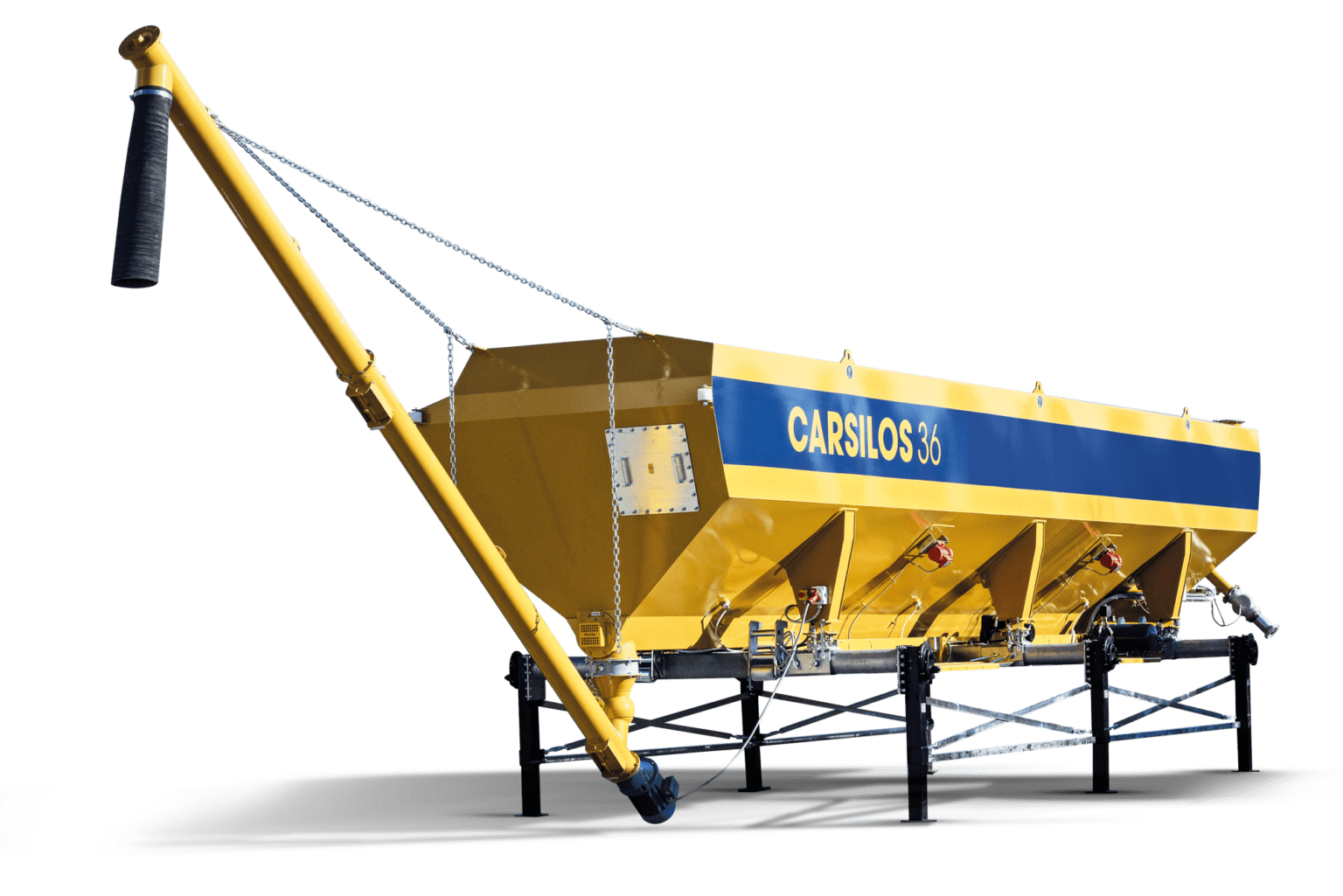

CARSILOS

Horizontal cement silos with flexible conveyor screw for material and electronic weighing system.

Carsilos cement silos optimises site productivity. It is available in the 16,26 and 36 m3 versions and consists of:

  • Electronic load cell weighing system, control display and process management.
  • Main frame with system for positioning and release from the vehicle, without requiring the assistance of lifting machines.
  • Vibration system to facilitate the flow of cement. conveyor and discharge screw directly at the required height, with possibility of adjustment. Electronic control panel complete with the safety systems required by current European standards.

Technical features

CARSILOS HC 16 FEATURES

Total storage capability 16 m3
Discharge auger 250 kg/min
Theoryc production 480 kg/l
Empty plant weight 4100 kg
Absorbed power 13 kW
Three-phase tension feeding 400V,50 Hz

CARSILOS HC 16 SIZE

Length 5840 mm
Height 4485 mm

CARSILOS HC 26 FEATURES

Total storage capability 26 m3
Theoryc production 480 kg/l
Empty plant weight 6200 kg
Absorbed power 13 kW
Three-phase tension feeding 400V,50 Hz

CARSILOS HC 26 SIZE

Length 8976 mm
Height 4485 mm

CARSILOS HC 36 FEATURES

Total storage capability 36 m3
Theoryc production 480 kg/l
Empty plant weight 7050 kg
Absorbed power 15 kW
Three-phase tension feeding 400V,50 Hz

CARSILOS HC 36 SIZE

Length 11540 mm
Height 4485 mm

Accessories on demand

Kit CE
Water plant with 2 water tanks
Wireless remote control
Electrical customization
