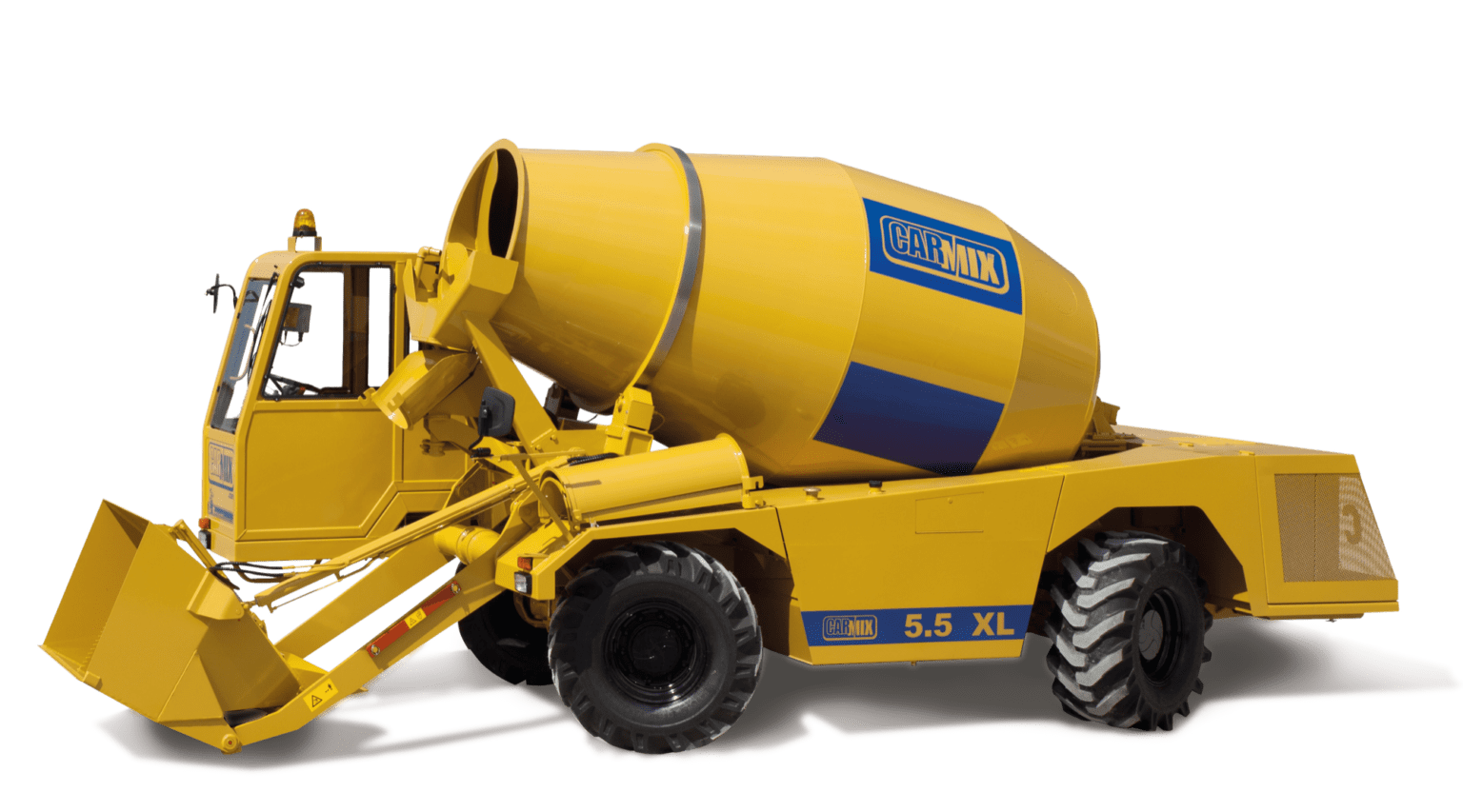

Carmix 5.5XL
Smart mobile concrete plant

Carmix 5.5XL

Off road mobile concrete batching plant with a 7.600-litre drum, 600-litre shovel, equipped with hydraulic opening gate and an operating speed from 0 to 10 km/h and road transfer speed from 0 to 30 km/h, with electric servo-control. The steel chassis of this concrete mixer machine has been especially engineered and designed for off-road operations.

The Carmix 5.5 XL cement mixer is equipped with checking and block valves which guarantee maximum safety of the operator.

Technical features

MIXING UNIT

Drum capacity 7600 liters
Concrete drum output 5,5 m3

ENGINE

Cummins turbo-diesel QBS 4.5 stage 3A tier III, 4 cylinders, 119 KW (161 hp) Technical features

SIZE

Length (without loading shovel) 6265 mm
Height without shovel 3150 mm
Height with shovel 4050 mm

TANKS CAPACITY

Diesel 115 liters
Water tank 2 x 400 liters
Hydraulic oil 80 liters

ACCESSORIES ON DEMAND

Electronic weighing system with printer
High-pressure washing pump
Clima (air conditioning plus heater)
Spare wheel
Additional discharging chute (100 cm)
Additive plant

Data sheet
