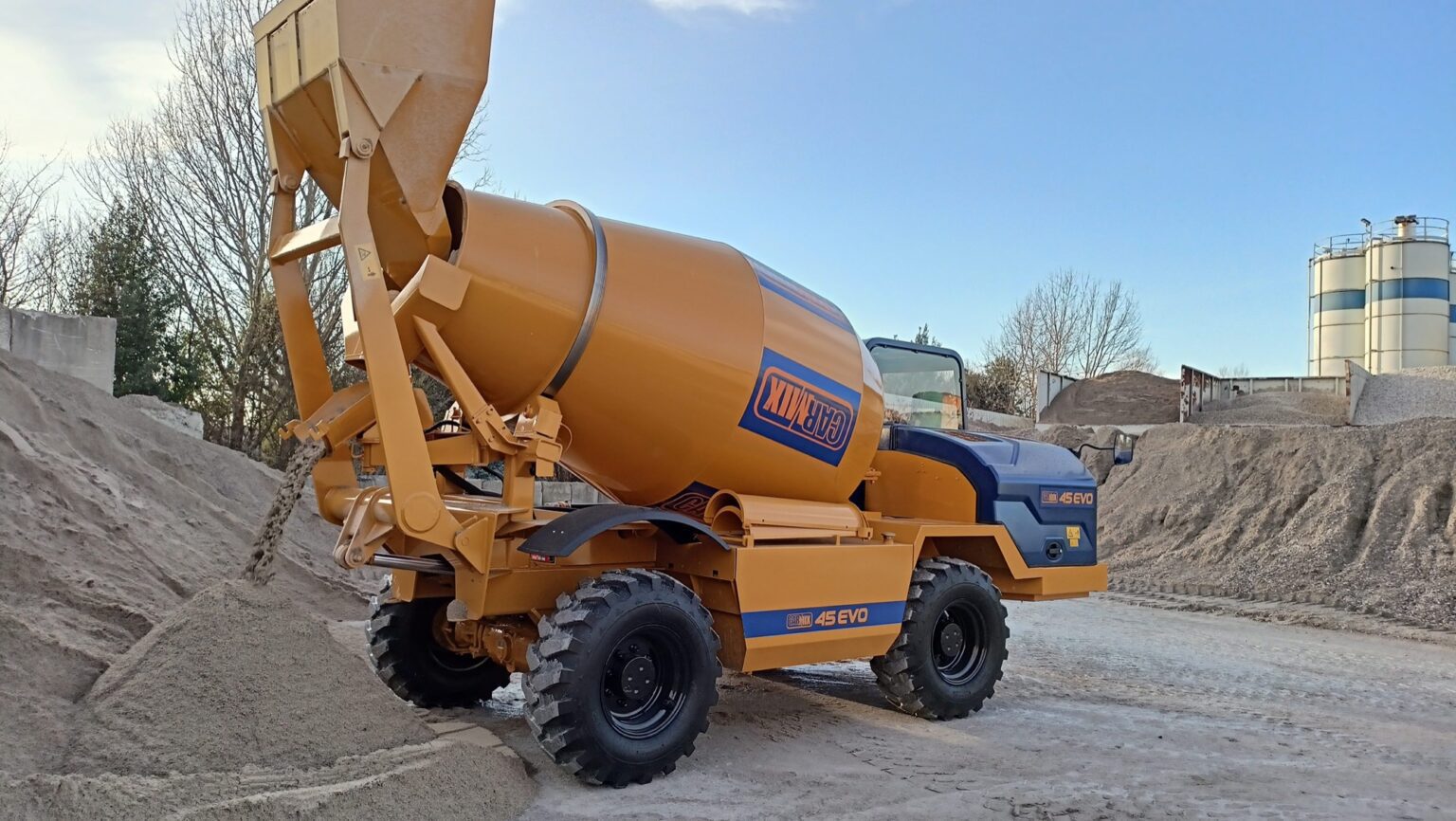

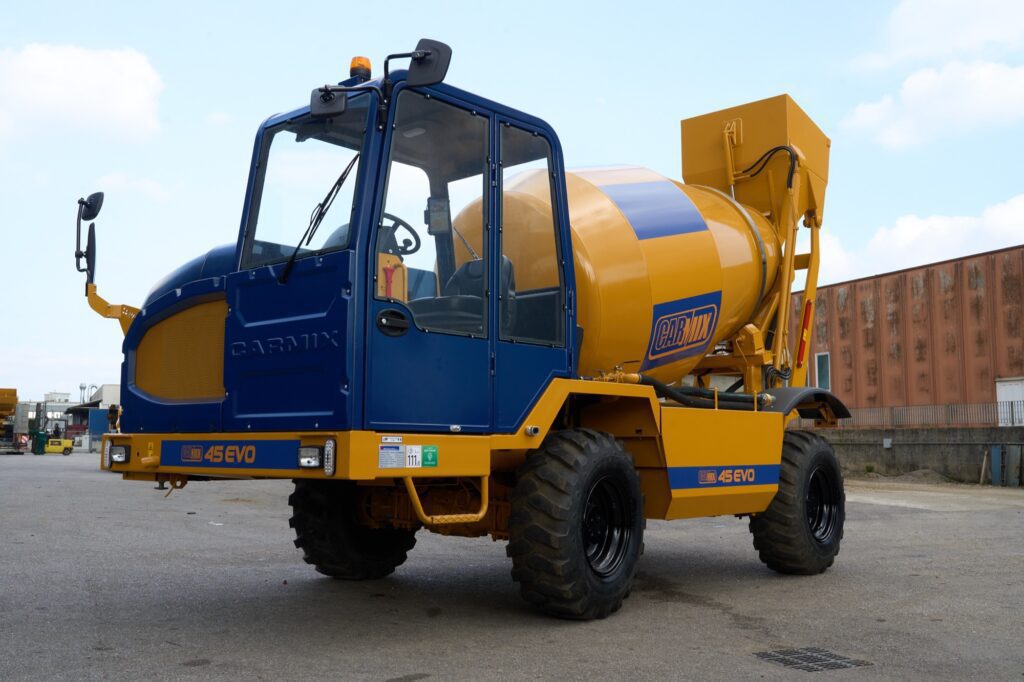

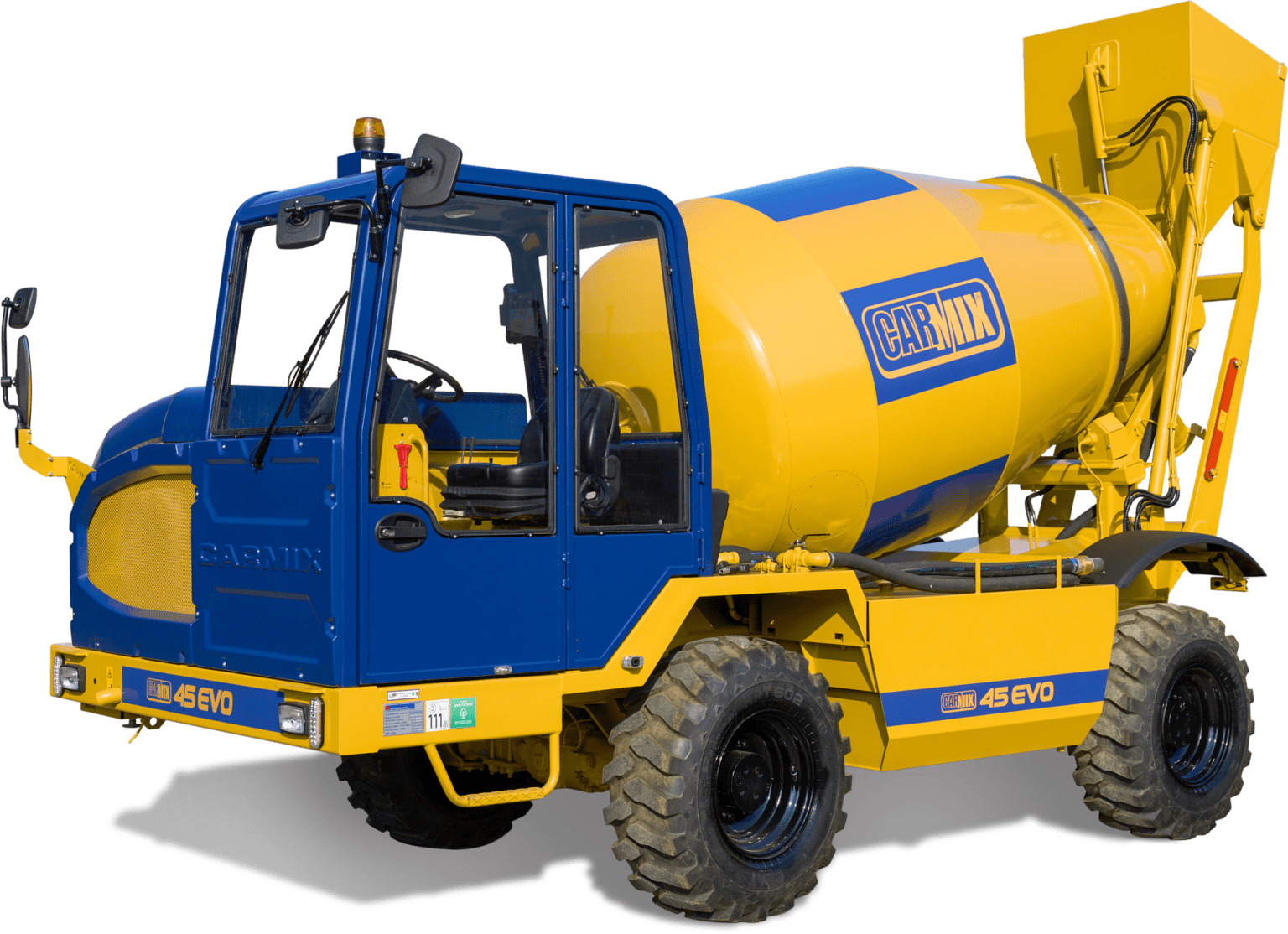

Carmix 45 EVO
Smart mobile concrete plant

Carmix 45 EVO

Technical features

MIXING UNIT

Drum capacity 6050 liters
Concrete drum output 4,5 m3

AVAILABLE ENGINES

Perkins Stage III - Tier 3A 1104D-44TA Turbo-diesel, 4 cylinders, 83 kW (111 HP) Technical features
Perkins Stage V - Tier 4F 904J-E36TA Turbo-diesel, 90 Kw (120 Hp)

SIZE

Length (without loading shovel) 5943 mm
Height without shovel 3140 mm
Height with shovel 4054 mm

TANKS CAPACITY

Diesel 130 liters
Water tank 2 x 600 liters
Hydraulic oil 80 liters

MYCARMIX

App and on board heavy duty tablet to control and manage mix design, engine diagnostic, geolocation and cloud technology

ACCESSORIES ON DEMAND

High-pressure washing pump
Rear camera
Spare wheel

Data sheet

Discover the other means of the range Smart mobile concrete plant
