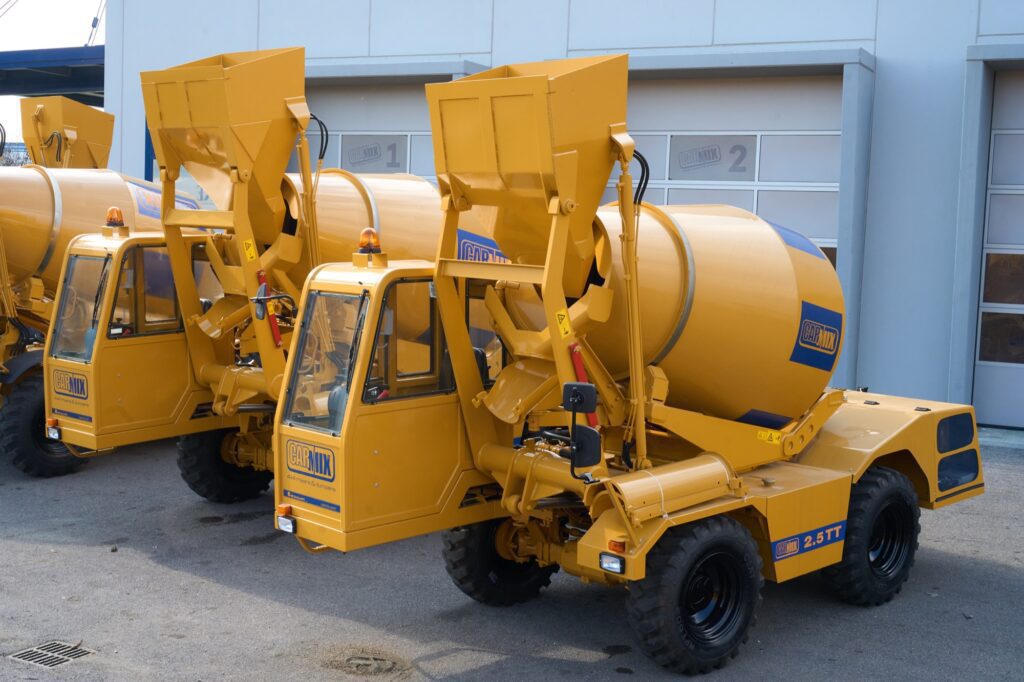

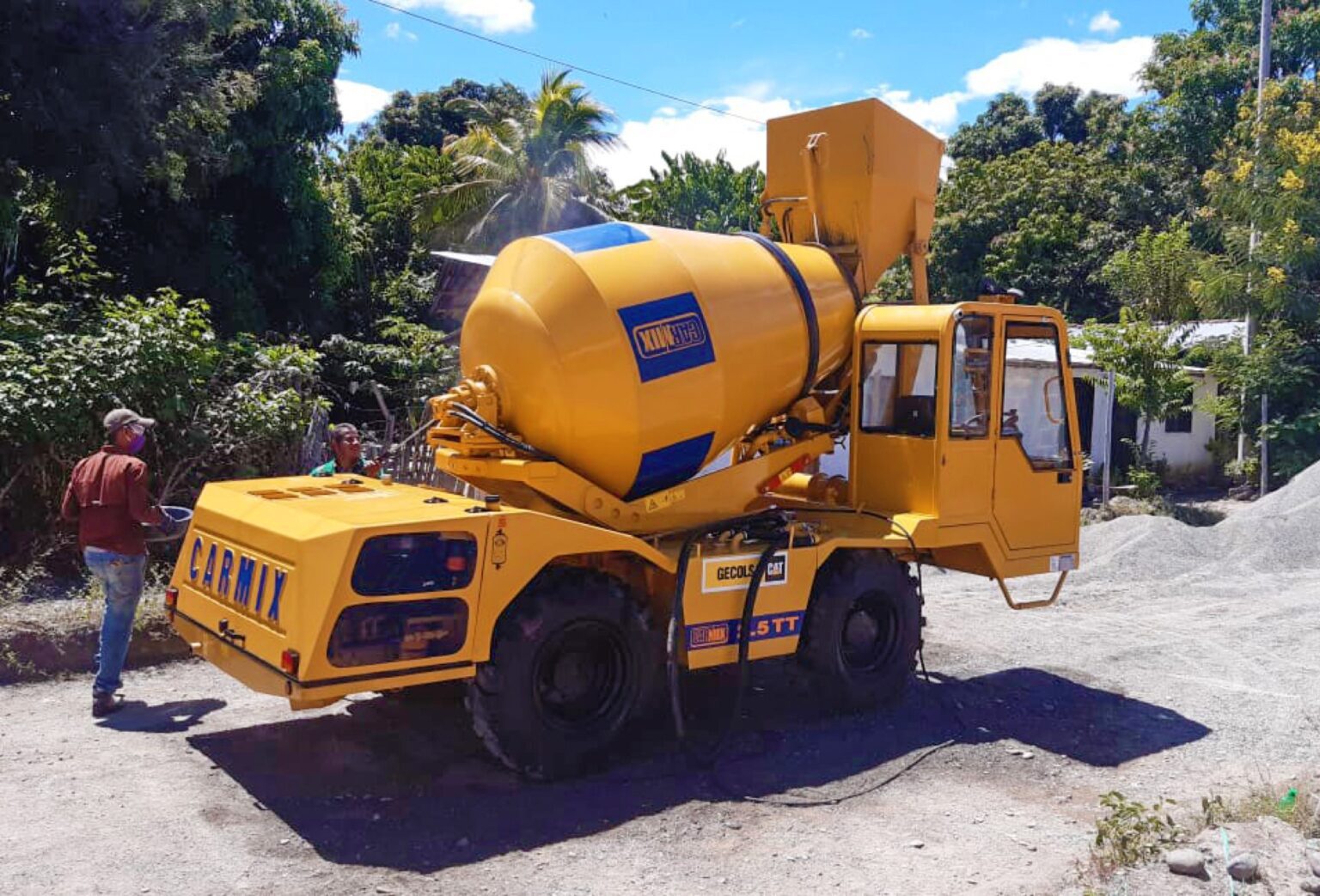

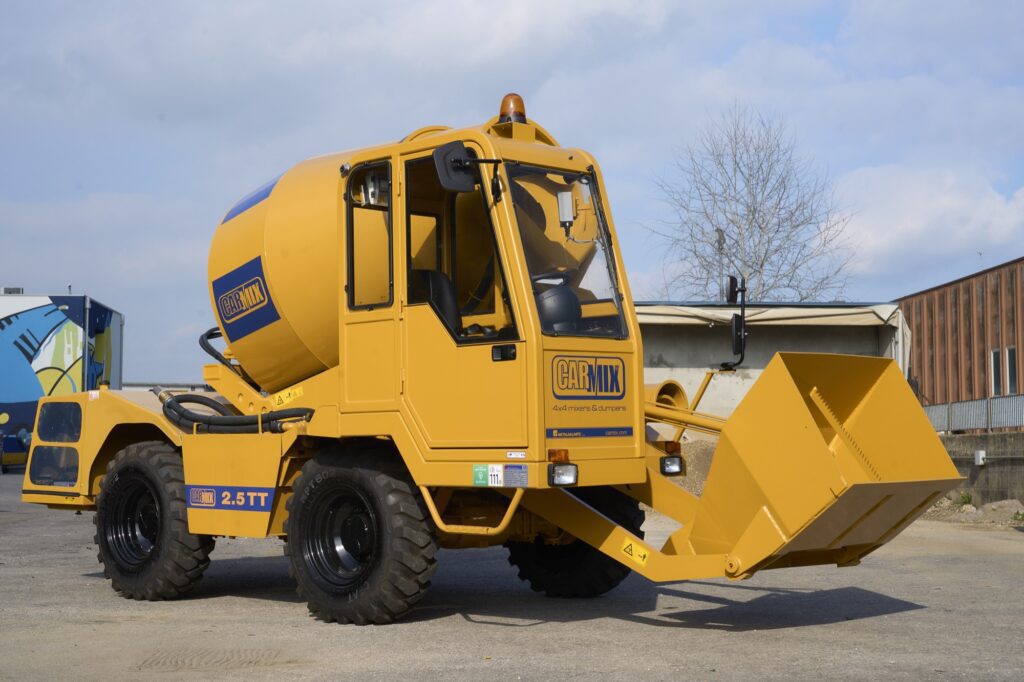

Carmix 2.5 TT
Smart mobile concrete plant

Carmix 2.5 TT

Off road mobile concrete batching plant with 3.400 litre drum, 400 litre shovel, equipped with hydraulic opening gate for hopper discharge and an operating speed from 0 to 9 km/h and road transfer speed from 0 to 25 km/h with electric servo-control.

The Carmix 2.5 TT self-loading concrete mixer has a comfortable and safety front cab on the side of the loading shovel: the mixer machine is equipped with checking and block valves for maximum safety of the operator.

Technical features

MIXING UNIT

Drum capacity 3450 liters
Concrete drum output 2,5 m3

AVAILABLE ENGINES

Perkins Stage III - Tier 3A 1104D-44T Turbo-diesel, 4 cylinders, 62,5 (84 HP) Technical features
Perkins Stage V - Tier 4F 904J-E36TA Turbo-diesel, 55,4 Kw (74 Hp)

SIZE

Length (without loading shovel) 5100 mm
Height without shovel 2880 mm
Height with shovel 3785 mm

TANKS CAPACITY

Diesel 105 liters
Water tank 2 x 270 liters
Hydraulic oil 80 liters

ACCESSORIES ON DEMAND

Electronic weighing system with printer
High-pressure washing pump
Clima (air conditioning plus heater)
Spare wheel
Additional discharging chute (100 cm)

Data sheet
